KFD Series Freeze dryer

KFD Series Freeze dryer

$1.00

Features:

Patented gas diversion technology, condenser has strong ice capture ability. International famous brand of double-stage rotary vane vacuum pump, fast pumping speed, to achieve higher level of vacuum degree. Patented technology controlling of baffle temperature, high temperature control precision, uniform drying effect. Flexible manual + automatic control mode, manual for exploring process, automatic for mass production. Real-time alarm display and historical alarm query function, convenient fault diagnosis and equipment maintenance. Vacuum adjustment is carried out during drying operation to avoid foaming of special substances and blowing bottles, thus improving drying efficiency.

Whatsapp:+8613395710684

Email:luisa@kassel-group.com

Get a Quote

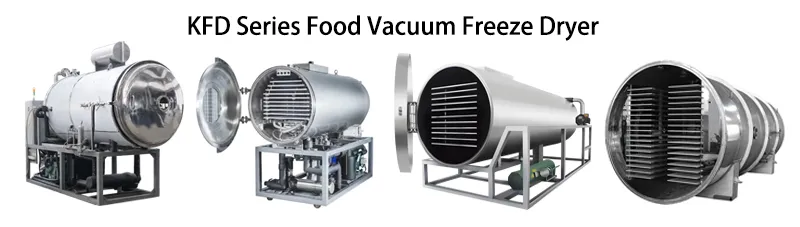

KFD Series Food Vacuum Freeze Dryer

KFD Series Medium-size Food Vacuum Laboratory Lyophilizer Features:

1. In situ pre-freeze drying reduces the tedious operation in drying process and realize the automation of freeze-drying.

2. Silicone oil as a circulating medium ensures high temperature control accuracy, small temperature difference between shelves (≤1℃), and uniform drying effect.

3. The adjustable and controlled shelf temperature is suitable for testing the production process.

4. Touch screen operation, PLC control, display drying curve.

5. The square tray is easy to operate and clean, and it’s not easy to deform.

6. Equipped with an inflation valve, it can be filled with dry inert gas.

Flexible manual+automatic control mode, manual for exploring process automatic for mass production.Accurate sensor calibration function to ensure the accuracy of process parameters in long-term use.

The drying curve optimization control algorithm can control the heating rate and vacuum degree value of the products in the drying stage.Patented gas diversion design and control technology, stormwater capture ability, high drying efficiency.

Can set user level and password, decentralized operation management. Accept customization, to meet customers’ requirements.

High-efficiency mixed refrigerant medium, low freezing point, and high boiling point, high heat transfer efficiency, long service life.

Diary products are freeze-dried by freeze dryer gently, the water of diary products is extrat in the form of vapour  during high-pressure vacuum production process.

The vapour is colleted on a condenser in the drying chamber, and returns to ice and is removed. All remaining “bound ” moisture will be extracted from diary products with increasing temperature. The physical structure and 99% nutritions of diary products will be maintained , and can be preserved for a long time.

Applications

  • Milk
  • Sheep Milk
  • Ice-cream
  • Cheese
  • Yogurt
  • Other Diary Products

Advantages of Medium-size Food Vacuum Laboratory Lyophilizer

1. Proteins don’t denature,microorganisms maintain their biological activity. Almost no loss of volatile substances, heat-denatured nutrients and aroma components in the product.

2. The growth of microorganisms and the action of enzymes can hardly be carried out and the product can best maintain its original

3. After freeze-drying, the volume and shape of the product are almost unchanged, and the rehydration is good.

4. Freeze-dried under vacuum with very little oxygen, so that easily oxidized material is protected.

5. Freeze drying can remove95-99.5% of the moisture in the material, and the storage period of the product is longer.

Advantage of freeze-dried

Technical Specification

Model KFD-1 KFD-2 KFD-5 KFD-10 KFD-20 KFD-30 KFD-50 KFD-75 KFD-100 KFD-125 KFD-150 KFD-200
Type Conductive type  Conductive type  Conductive type  Conductive type  Conductive type  Conductive type  Radiant type Radiant type Radiant type Radiant type Radiant type Radiant type
Ice capacity(kg/batch) 15kg 30kg 75kg 150kg 300kg 450kg 750kg 1125kg 1000kg 1250kg 1500kg 2000kg
Condenser temperature(℃) Minus 50 °C Minus 50 °C Minus 50 °C Minus 50 °C Minus 50 °C Minus 50 °C Minus 50 °C Minus 50 °C Minus 50 °C Minus 50 °C Minus 50 °C Minus 50 °C
Shelf Temperature(℃) <100 ℃ <100 ℃ <100 ℃ <100 ℃ <100 ℃ <100 ℃ <100 ℃ <100 ℃ <100 ℃ <100 ℃ <100 ℃ <100 ℃
Pre-freezing IQF-Individual Quick Frozen IQF-Individual Quick Frozen IQF-Individual Quick Frozen IQF-Individual Quick Frozen IQF-Individual Quick Frozen IQF-Individual Quick Frozen IQF-Individual Quick Frozen IQF-Individual Quick Frozen IQF-Individual Quick Frozen IQF-Individual Quick Frozen IQF-Individual Quick Frozen IQF-Individual Quick Frozen
Shelf area(㎡) 1 ㎡ 2㎡ 5㎡ 10㎡ 20㎡ 30 ㎡ 50㎡ 80㎡ 100㎡ 125㎡ 150㎡ 200㎡
No of shelves 5+1 6+1 5+1 11+1 14+1 13+1 13+1 13+1 18+1 18+1 19+1 19+1
Shelf dimensions(m) 0.5*0.4 1.0*0.4 1.25*0.8 1.2*0.8 1.45*1.0 2.4*1.2 3.5*1.2 5.9*1.2 5.9*1.2 5.6*1.2 8.3*1.2 10.6*1.2
Shelf spacing(mm) 78 78 78 78 78 78 78 78 78 78 78 78
Heating/Cooling medium  Silicon oil Silicon oil Silicon oil Silicon oil Silicon oil Water Water Water Water Water Water Water
No of trays  5pcs 12pcs 30pcs 66pcs 126pcs 104pcs 156pcs 260pcs 360pcs 432pcs 532pcs 684pcs
Tray dimension(mm) 400*500 345*495 395*415 395*395 470*325 600*520*30 600*520*30 600*520*30 600*520*30 600*520*30 600*520*30 600*520*30
Refrigerant R404A R404A R404A R404A R404A R404A R404A R404A R404A R404A R404A R404A
Cooling method air cooled/water cooled air cooled/water cooled air cooled/water cooled air cooled/water cooled air cooled/water cooled water cooled/evaporative cooling water cooled/evaporative cooling water cooled/evaporative cooling water cooled/evaporative cooling water cooled/evaporative cooling water cooled/evaporative cooling water cooled/evaporative cooling
Final vacuum(pa) 10Pa 10Pa 10Pa 10Pa 10Pa <10Pa <10Pa <10Pa <10Pa <10Pa <10Pa <10Pa
Defrosting method Hot water/stream Hot water/stream Hot water/stream Hot water/stream Hot water/stream Hot water/stream Hot water/stream Hot water/stream Hot water/stream Hot water/stream Hot water/stream Hot water/stream
Total Power(kw) 9kw 13kw 20kw 40kw 50kw 64kw 89kw 117kw 176kw 208kw 261kw 352kw
Installation area(㎡) 3 6 9 11 15 100 130 180 200 225 320 380
Chamber dimension(m) 1.2*0.6*1.8 1.5*1.0*1.8 2.5*1.3*2 3.0*1.3*2.5 3.7*2*2.5 6.2*2.3*2.5 7.6*2.3*2.5 8.9*2.3*2.5 11*2.5*3 11*2.5*3 14*2.6*3 17*2.6*3
Weight(kg) 1500 2000 2500 3800 7000 8500 11000 14000 17000 19000 22000 25000

The Whole Production Line

Highlights And Features

  • Aerospace grade aluminum alloy partition material, double-sided radiation heating, radiation rate of more than 90%, good  temperature uniformity and thermal conductivity.
  • High efficiency mixed refrigerant medium, low freezing point and high boiling point, high heat transfer efficiency, long service life
  • Patented gas diversion design and control technology, strong water capture ability, high drying efficiency.
  • Accurate sensor calibration function to ensure the accuracy of process parameters in long-term use.
  • The drying curve optimization control algorithm can control the heating rate and vacuum degree value of the products in the drying  stage.
  • Bitzer compressor from germany, stable, reliable, no faluire.
  • Ulvac vacuum pump from japan, excellet performance ,no noise. good stability
  • Simens PLC control cabinet, safety, stable,effectiveness.
  • Perfect pre and after-sales service: providing instabllation, debugging,traing service etc
  • Pre-freezing and drying are two separated structures, which is able to freeze and dry at the same time. This can improve the  efficiency of freeze-drying and product efficiency.

Successful Projects

FAQ

Why your price is relatively high?

We are in zhejiang province which is known for the quliaty of its mechanical manufacturing and fine craftsmanship. Our first priority is always based on the quality. If you want A more economica price,please let us know your budget, So that we could make some modification to meet your needs.

What is your installation service system?

Our enigneer has been working 20 years in freeze dryer machines and has been over to 20 countries to install our freeze dryer equipments. Now he has US Visa, So it is easy for him to go many other countries to start installation. So when we make a deal , we will arrange our engineer to your factory in 2 weeks, and he wil finish his work within 2 weeks. The customer should pay his round-trip ticket,hotel, food and daily wage USD100. Our engineer can speak english and can communicate with your team fluently . Excellent service deservces its cost.

What Is Your After-Sales Service System?

Our target customer groups are all from developed countries, USA, European, Middle east, Korea, Russia, Colomibia etc. They are all have high requirements with freeze-dryer. The core components of our freeze dryers are all imported from germany , Japan, Italy etc, has excellent stability , low energy consumption and almost no faluire. If there are any problems caused by non-human facors, we will undertake the full responsibility and relace new one for you, so please don’t worry about our after-sales service.

How Could You Control And Ensure Your Machine Quality?

Firstly of all, we are professional manufacturer and has own production line, the core components of freeze dryer are all imported from Germany, Japan,

Italy etc, and each part is completed independently by our factory self. We take the quality as priority and control the each production process strictly ,from design ,R&D, producing .We refuse to attract our customers with low price but low quality.
